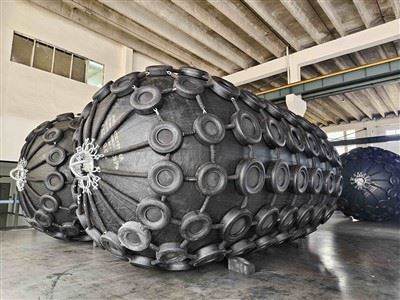

Lub Nkoj Collision Tiv Thaiv Pneumatic Roj Hmab Fender
Pneumatic Roj Hmab Fenders ntau hauv txoj kab uas hla los ntawm 500mm thiab hauv qhov ntev los ntawm 1 {mm mus rau 10,000mm, thiab tseem tuaj yeem kho tau.
Hauj lwm lawm
3m * 6m pneumatic ferer nrog cov log tsheb ua haujlwm, ntu segmented shackle
Kev piav txog
| Cov Khoom Siv Tseem Ceeb: | Ntuj Roj Hmab | Daim ntawv muaj cai | ISO17357 BV CCS ABS LR DVN SGS KR RAJ |
|---|---|---|---|
| Lub Sijhawm Warranty: | 12 lub hlis | Tsim siv lub neej: | Ntau tshaj 10 xyoo |
| Thaum pib siab: | 50KPA; 80KPA | Xim: | Dub, Dawb, Grey, Mekas |
| Highlight: |
Nkoj dock fenders,Yokohama Pneumatic Roj Hmab Fender,Pneumatic Roj Hmab Tub Rog Fender |
||
Cov lus qhia
Pneumatic Roj Hmab Fender yog cov hnav-resistant roj hmab tau puv nrog cov cua siab. Nws yog ib qho yooj yim rau deflate, yooj yim los daws, thiab yog tsim los muab kev tiv thaiv zoo rau cov hlab ntsha thiab yog tus nqi-ua haujlwm zoo. Cov. Cov fenders muaj nyob hauv ob qib siab sib txawv: 50kpa thiab 80kpa kom tau raws li cov kev xav tau ntawm cov ntawv thov sib txawv.
Cov khoom siv Fenders ntau hauv txoj kab uas hla los ntawm 500mm rau 4,500mm, ntev los ntawm 1, {4}} hnab, thiab ntau thiab tsawg yog muaj.
Txhua qhov ntau thiab tsawg yog muaj nyob rau hauv hom sling lossis nrog hnyav-ua haujlwm saw thiab log net.
When it comes to performance and reliability, the ISO {{0}}compliant marine inflatable rubber fenders set the benchmark for excellence. Nws cov pov thawj tsis ntev, puas tsis kam thiab lub zog nqus tau thiab lub zog ua nws txoj kev xaiv ua kom tau txais txiaj ntsig rau kev siv marine thoob ntiaj teb. Txawm hais tias koj tab tom nrhiav rau d 3.0mxl 6m muaj peev xwm los yog ib tus neeg siv roj hmab muaj txiaj ntsig zoo tshaj plaws thiab ua tau raws li cov qauv kev lag luam zoo tshaj plaws.
Cov txiaj ntsig thiab cov yam ntxwv ntawm Yokohama PneuamTic Marine Fenders
- Kev thov yooj yooj yim
- Tsawg heev tiv thaiv thiab hull siab
- Muaj feem xyuam rau cov nyom me thiab loj tidal
- Khaws cov kev tshem tawm loj ntawm Hull thiab cov qauv
- Econical Cov Tshuaj Tswj Tau Nqi
- Yooj yim rau deflate thiab tuaj yeem siv rau hauv cov haujlwm sib txawv lossis khaws cia rau ntawm lub nkoj lawj
- Ua iso 17357-1: 2014 Txuj
Roj Hmab Pneumatical Fenders thiab Kev Ua Tau Zoo
|
Qhov loj me (dia x l) |
Kev Ua Haujlwm @ 60% Compression |
|||||
|
lub hli |
Pib ua haujlwm siab 50 KPA |
Pib ua kom siab 80 kpa |
||||
|
Lub zog nqus dej (km-m) |
Yuam kev siv (kn) |
Hu Nkauj Siab (KPA) |
Lub zog nqus dej (km-m) |
Yuam kev siv (kn) |
Hu Nkauj Siab (KPA) |
|
|
500 x 1000 |
6 |
64 |
132 |
8 |
85 |
174 |
|
600 x 1000 |
8 |
74 |
126 |
11 |
98 |
166 |
|
700 x 1500 |
17 |
137 |
135 |
24 |
180 |
177 |
|
1000 x 1500 |
32 |
182 |
122 |
45 |
239 |
160 |
|
1000 x 2000 |
45 |
257 |
132 |
63 |
338 |
174 |
|
1200 x 2000 |
63 |
297 |
126 |
88 |
390 |
166 |
|
1350 x 2500 |
102 |
427 |
130 |
142 |
561 |
170 |
|
1500 x 3000 |
153 |
579 |
132 |
214 |
761 |
174 |
|
1700 x 3000 |
191 |
639 |
128 |
267 |
840 |
168 |
|
2000 x 3500 |
308 |
876 |
128 |
430 |
1150 |
168 |
|
2500 x 4000 |
663 |
1381 |
137 |
925 |
1815 |
180 |
|
2500 x 5500 |
943 |
2019 |
148 |
1317 |
2653 |
195 |
|
3000 x 5000 |
1050 |
2030 |
135 |
1450 |
2580 |
185 |
|
3300 x 4500 |
1175 |
1884 |
130 |
1640 |
2467 |
171 |
|
3300 x 6500 |
1814 |
3015 |
146 |
2532 |
3961 |
191 |
|
4500 x 6500 |
3238 |
3796 |
145 |
4518 |
4998 |
195 |
|
4500 x 9000 |
4752 |
7984 |
154 |
6633 |
7551 |
202 |
Cov FAQ
1. Peb yog leej twg?
+
-
Qingdaudao Luhang marine airbag thiab fender Co., Ltd. yog tusCov Thawj Coj Ua Si & Chaw Tsim Tshuajntawm cov khoom siv marine: marine airbags, yokohama pneumatic fenders, uas yog qhov tshwj xeeb hauv cov thawv tsim cov thawv thiab txhua hom neeg foobTxij xyoo 1988.
2. Cov khoom pov thawj twg yog cov khoom no muaj?
+
-
Cov khoom no muaj pov thawj los ntawm BV, CCS, ABS, LR, DVN
3.Qhov koj tuaj yeem yuav khoom ntawm peb li cas?
+
-
Pneumatic Fender, Ua Npuas Ncauj Fender, Roj Hmab Airbag, Mooring Buoy,
4. Vim li cas koj yuav tsum xaiv peb
+
-
1. Luhang yog thawj lub chaw tsim khoom siv ntawm cov roj hmab pneumatic fenders nrog ntau dua 30 xyoo ntawm kev txhim kho thiab kev tsim khoom.
2.trusted lub tuam txhab tsim cov roj hmab pneumatic fenders nrog cov khoom siv roj hmab kom zoo, kom muaj ntau tsawg ntawm cov khaubncaws sab nraud povtseg.
3. ISO muaj ntawv pov thawj nrog ntau cov khoom patents
4. Pneumatic roj hmab Fenders tau raug tshuaj xyuas thiab tau lees paub los ntawm cov neeg sab nraud xws li CCS, SGS, V-ntseeg siab, tsis tshua muaj zog yuam thiab cua nruj.
